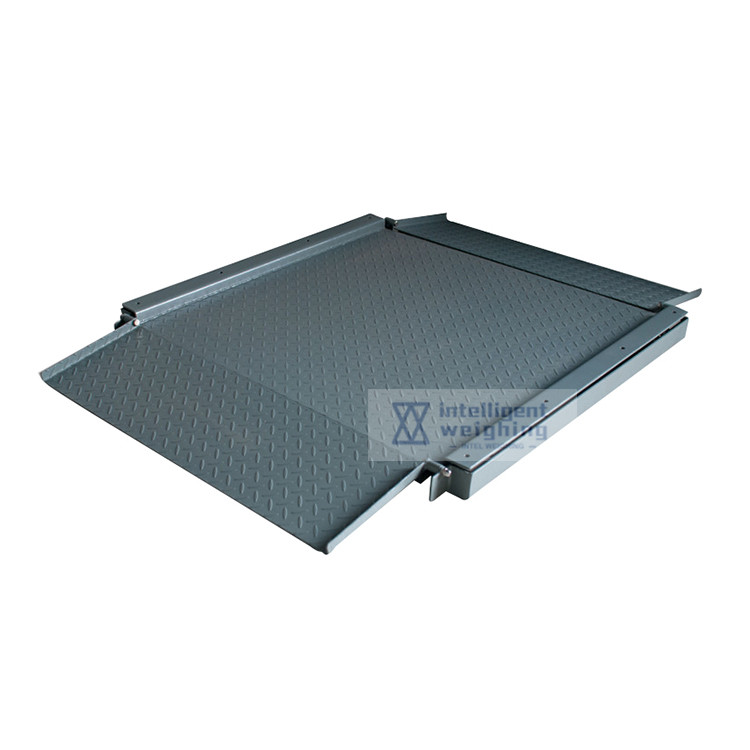

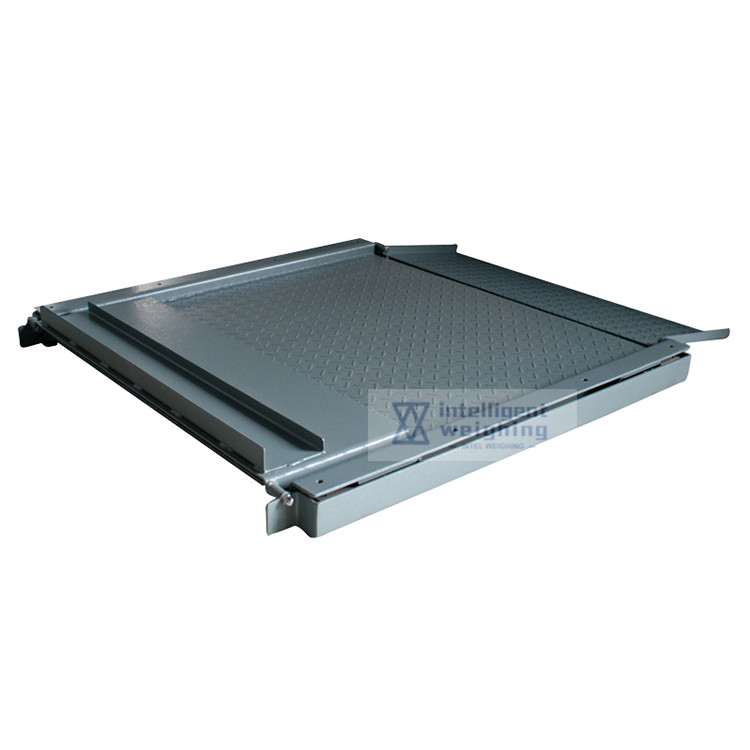

1.5x1.5m 3000kg low profile floor scale with ramps
1.5x1.5m 3000kg low profile floor scale with ramps 1.5x1.5m 3000kg low profile floor scale with ramps 1.5x1.5m 3000kg low profile floor scale with ramps

1.5x1.5m 3000kg low profile floor scale with ramps

Product ID : IWFS1202A-MS1515
Product Tags :
Product Attributes :

Intelweighing floor scales are perfect for accurate weighing solution that combines a basic scale platform and indicator. Ideal for loading docks and general-manufacturing facilities, the scale platform features a nonslip tread-plate surface that provides safe footing. The indicator handles a variety of weighing operations, including simple weighing, tare weighing, counting, and accumulation. It can provide accurate, reliable weighing.

Product Description

Low Profile Floor Scale  (Model: IWFS1202A)



Technical Parameters:

Accuracy class: III

Display: 6-digit 20mm LED or 25mm LCD with backlight

Work environment: -10°C t40°C ,《85%RH

Power supply: AC110/220V50/60Hz, built-in DC4W4Ah lead acid battery



Structural Features:

Low profile, 60mm high

Ultra short ramp: 300mm

U-shaped steel welded structure, high strength

Material: carbon steel or stainless steel, chequered plate

Carbon steel platform: shot blasting, spray paint processing

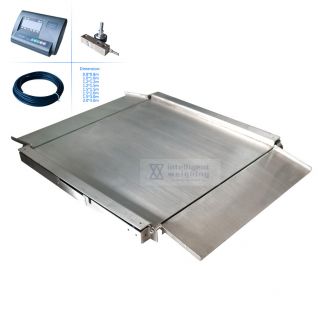

Stainless steel platform surface is polished and wire drawn Four alloy steel or stainless steel load cells

Standing Tube(optional)



Product Function:

Zero

Counting

Accumulate

Tare

Rechargeable battery

RS232(optional)

Weighing data save/check/delete(optional)

USB(optional)

Bluetooth(optional)

Printer(optional)(Terminal printer/Dot matrix printer/label printer)

Support to input words, even by extra keypad and mouse(optional)

Multiple output port, can connect with printer , scan gun, alarm light(optional)



Model type



ITEM NO.

Length (m)

Width (m)

Capacity (kg)

Division value

Material

IWFS1202A-MS0808

0.8

0.8

100-3000

1/3000-1/6000

Mild steel

IWFS1202A-MS1010

1.0

1.0

100-3000

1/3000-1/6000

IWFS1202A-MS1212

1.2

1.2

100-3000

1/3000-1/6000

IWFS1202A-MS1515

1.5

1.5

100-3000

1/3000-1/6000

IWFS1202A-SS0808

0.8

0.8

100-3000

1/3000-1/6000

Stainless steel

IWFS1202A-SS1010

1.0

1.0

100-3000

1/3000-1/6000

IWFS1202A-SS1212

1.2

1.2

100-3000

1/3000-1/6000

IWFS1202A-SS1515

1.5

1.5

100-3000

1/3000-1/6000
