PRODUCT

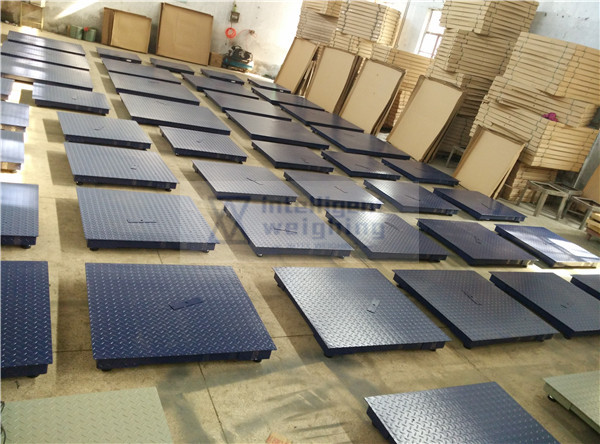

2x2m 10ton industrial floor scale
Intelweighing floor scales are perfect for accurate weighing solution that combines a basic scale platform and indicator. Ideal for loading docks and general-manufacturing facilities, the scale platform features a nonslip tread-plate surface that provides safe footing. The indicator handles a variety of weighing operations, including simple weighing, tare weighing, counting, and accumulation. It can provide accurate, reliable weighing.

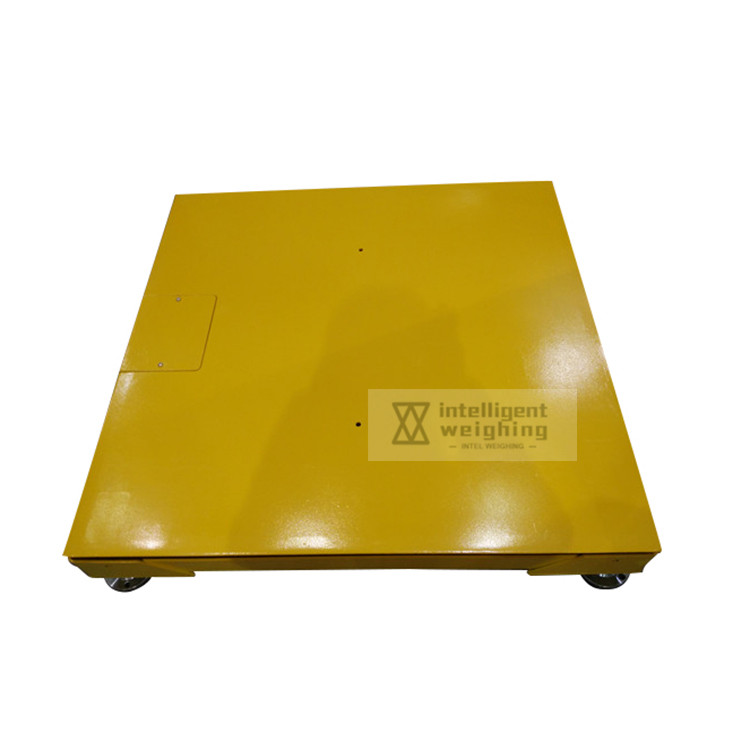

Floor Scale With Frame (Model: IWFS1201)
Technical Parameters:
Accuracy class: III
Display: 6-digit LCD, 6 state indicating signal
Work environment: -10°C t40°C ,《85%RH
Power supply: AC110/220V50/60Hz, built-in DC4W4Ah lead acid battery
Structural Features:
Low profile with frame structure
U-shaped steel welded structure, high strength
Material: carbon steel or stainless steel, chequered plate or flat plate
Carbon steel platform: shot blasting, spray paint processing
Stainless steel platform surface is polished and wire drawn Non-inverted support, good self-resetting
Four high precision shear beam load cells
Ramps(optional)
Standing Tube(optional)
Product Function:
Zero
Counting
Accumulate
Tare
Rechargeable battery
RS232(optional)
Weighing data save/check/delete(optional)
USB(optional)
Bluetooth(optional)
Printer(optional)(Terminal printer/Dot matrix printer/label printer)
Support to input words, even by extra keypad and mouse(optional)
Multiple output port, can connect with printer , scan gun, alarm light(optional)
Model type
|
ITEM NO. |
Width (m) |
Length (m) |
Capacity (kg) |
Division value |
Material |
|
IWFS1201-MS0808 |
0.8 |
0.8 |
300-3000 |
1/3000-1/6000 |
Mild steel |
|
IWFS1201-MS1010 |
1.0 |
1.0 |
300-3000 |
1/3000-1/6000 |
|
|
IWFS1201-MS1012 |
1.0 |
1.0 |
300-3000 |
1/3000-1/6000 |
|
|
IWFS1201-MS1212 |
1.2 |
1.2 |
300-3000 |
1/3000-1/6000 |
|
|
IWFS1201-MS1215 |
1.2 |
1.5 |
300-5000 |
1/3000-1/6000 |
|
|
IWFS1201-MS1515 |
1.5 |
1.5 |
300-5000 |
1/3000-1/6000 |
|
|
IWFS1201-MS1520 |
1.2 |
2.0 |
300-5000 |
1/3000-1/6000 |
|
|
IWFS1201-SS0808 |
0.8 |
0.8 |
300-3000 |
1/3000-1/6000 |
Stainless steel |
|
IWFS1201-SS1010 |
1.0 |
1.0 |
300-3000 |
1/3000-1/6000 |
|
|
IWFS1201-SS1012 |
1.0 |
1.0 |
300-3000 |
1/3000-1/6000 |
|
|
IWFS1201-SS1212 |
1.2 |
1.2 |
300-3000 |
1/3000-1/6000 |
|
|
IWFS1201-SS1215 |
1.2 |
1.5 |
300-5000 |
1/3000-1/6000 |
|
|
IWFS1201-SS1515 |
1.5 |
1.5 |
300-5000 |
1/3000-1/6000 |
|
|
IWFS1201-SS1520 |
1.2 |
2.0 |
300-5000 |
1/3000-1/6000 |
