PRODUCT

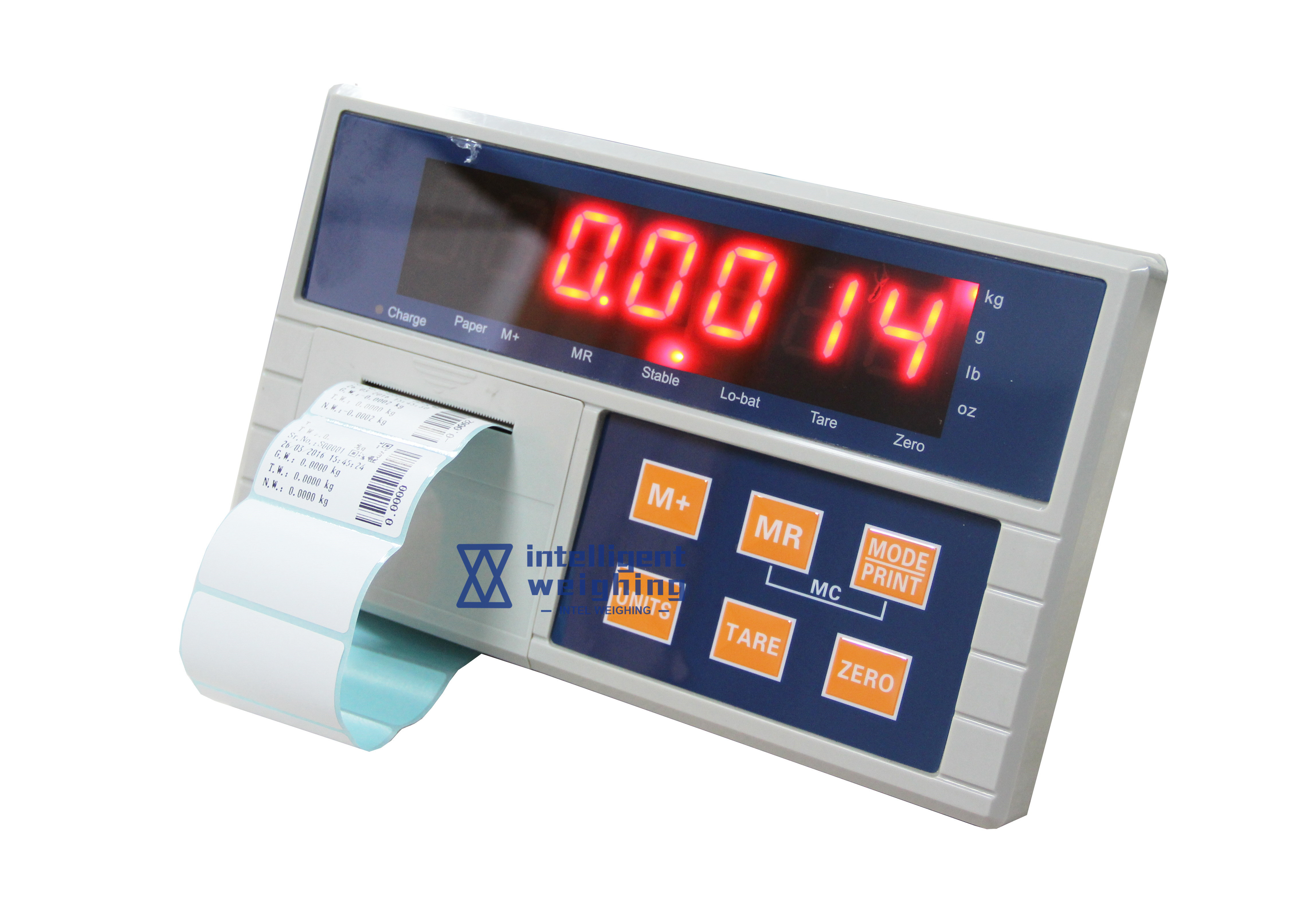

LABEL PRINTER INDICATOR
Product ID : IWSC2300-PWE
Product Tags :
indicator
Product Attributes :
LED Inside printer weighing indicator（label)
Product Description
Standard Function:
Can store weighing data
can store/check/delete
label edit program
LED/LCD display
High precision A/D conversion with readability 1/30000
AC/DC power supply, with inside rechargeable 6V/4AH battery
Able to setup zero-tracking range
Able to setup print function
Weighing data save/check/delete
Standard RS232 communication interface with selectable baud rate and communication method
| Model | IWSC2300-PWC | IWSC2300-PWE |
| Display | 6 digits LCD | 6 digits LED |
| Capacity | 1-800000kg | 1-800000kg |
| Verified counts | 1/30000-1/60000 | 1/30000-1/60000 |
| A/D conversion method | ∑—△ | ∑—△ |
| A/D conversion speed | 8 times/sec | 8 times/sec |
| Max. A/D conversion bits | 24 | 24 |
| Input signal range | -20mV～20mV | -20mV～20mV |
| Input sensitivity | ≥0.02 μ V/e | |
| Load cell excitation | DC 5V: 1 ≤150mA | |
| Max. connection number of load cell | 8 at 350 ohm | |
| Load cell connection mode | 4 wire, auto compensation for long distance ≤ 10 meters | |
| Temperature | 0°C to +40°C / +32°F to +104°F | |
| Power supply | AC 12V/3A ; DC inside rechargeable 6V/4AH battery | |
| Calibration | Manual calibration | |
| Calibration weight | 0-100% Cap. | |
| Appearance | ABS | |
| Scale size(w x d x h) | 260x155x75mm | |
| Net weight/Package | 1.6kg/10pcs | |
| Paper roll size | Wide=57mm,Diameter=38mm | |
| Label sticker roll size | Wide=50mm,Diameter=38mm | |
