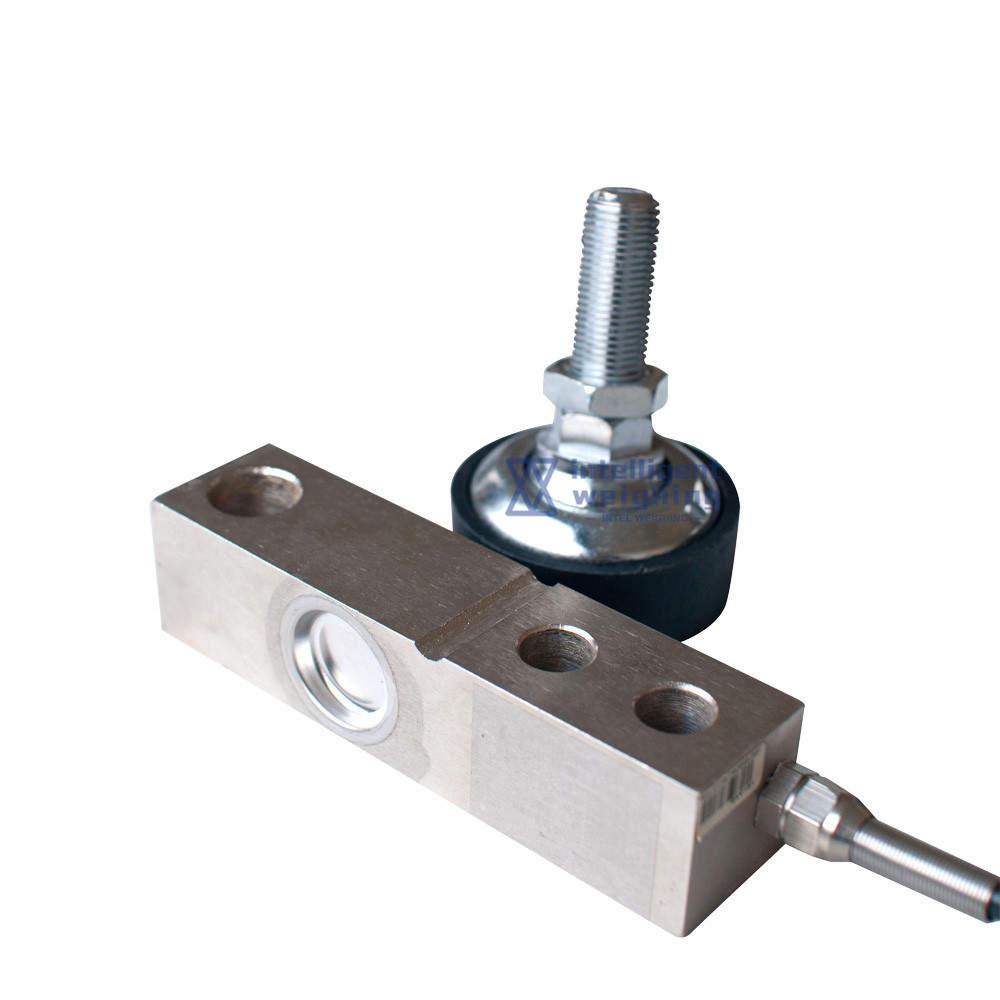

FEATURES:
●Capacity: 0.1t to 10t
●Theaded load hole confirguration
●Low profile
●OIML C3 approval
●Optional material: stainless steel, alloy steel
APPLICATION:
●Floor scale
●Tank weighing
|
Outline Dimension： |
|||||||||||
|
Rated capacity(t) |
L |
L1 |
L2 |
L3 |
L4 |
H |
H1 |
W |
C1 |
C2 |
T |
|
0.1,0.15,0.2,0.3,0.5, 0.75,1,1.5,2,2.5 |
130 |
12.7 |
76.2 |
25.4 |
53.5 |
31.8 |
15.7 |
31.8 |
Φ13.5 |
Φ13 |
M12 |
|
3,5 |
171.5 |
19 |
95.3 |
38.1 |
72.5 |
38.1 |
26 |
38.1 |
Φ20 |
Φ20 |
M18x1.5 |
|
7.5,10 |
225.5 |
25.3 |
124 |
50.8 |
102 |
50.8 |
25.4 |
50.8 |
Φ27 |
Φ27 |
M24x2 |
|
SPECIFICATION: |
|
|
Rated capacity: 0.1ton to 10ton |
Operating temperature range: -30 to +70℃ |
|
Rated output:2.0±0.002mv/v(0.1t~0.3t)； 3.0±0.003mv/v(0.5t~10t) |
Maximum safe overload；150% OF R.C |
|
Combined error：±0.03% F.S(alloy steel)； ±0.05% F.S(stainless steel) |
Ultimate safe overload；180% OF R.C |
|
Non-repeatability：±0.02% F.S |
Recommended Excitation；10 to 12V DC |
|
Non-linearity：±0.02% F.S |
Maximum Excitation；15V DC |
|
Hysteresis error：±0.02% F.S |
Environment protection: IP67(0.1t~0.3t)； IP68(0.5t~10t) |
|
Zero balance: ±1% F.S |
Input impedance: 400±20Ω |
|
Creep error(30minutes): ±0.02% F.S |
Output impedance: 352±3Ω |
|
Temperature effect on zero: ±0.02% F.S |
Insulation resistance at 50V DC: ≥5000MΩ |
|
Temperature effect on output: ±0.02% F.S |
Material: nickel-plated alloy steel；Stainless steel |
|
Compensated temperature range: -10 to +40℃ |
Cable length: (1.5/3)meter(0.1t~2.5t),4.2meter(3t~5t)，5meter(7.5t~10t)，diameter 6mm
|
