30ton portable truck axle scale
30ton portable truck axle scale 30ton portable truck axle scale

30ton portable truck axle scale

Product ID : IWPX2000 -WD7043
Product Tags :
Product Attributes :

Intelweighing axle scale are a very good choice for Mines and Factories, where installations are required to be quick. Shifting axle weighbridge can be done quickly and needs only a small pickup truck for transportation.

Axle weigh bridges are very cost effective solution, the user benefits from the low equipment cost, low cost of civil work & installation and hence rapid recovery on investment.Civil work takes only 3 to 4 days time and the installation can be done in just one day. With its many advantages and cost benefits, axle weighbridge is highly rewarding solution with no compromise.

Product Description

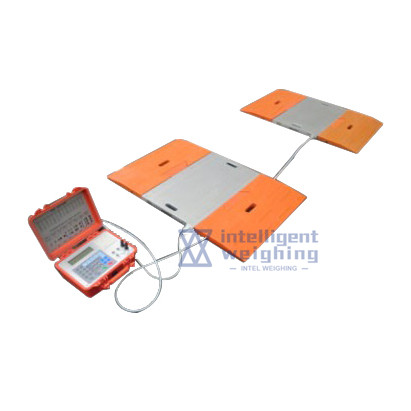

Portable Axle Scale  (Model:IWPX2000)

Technical Parameters:

5ppm/° C full scale temperature coefficient;

Internal resolution of 24 bits;

Sample rate 200 times / S

Display update speed is 12.5 times / second;

System non-linearity is less than 0.01%;

Sensor excitation power DC 5V ± 2%;

Operating temperature: 0 ° C-40 ・ C;

Power consumption (excluding sensor): 70mA (not printing, turn off the backlight). 1000mA (when printing):

The power supply has a built-in 6V / 7AH clamp acid battery, which can be connected to a DC power supply (7.5V / 1A or 12V / 1A);



Structural Features:

Low-profile (30mm high) design with integral transport handle

Corrosion resistant

Adopting stain gages inside, with high precision, good stability

Slip-resistant black rubber ramps,  interlocking

With battery-operated portable tally roll printer inside the indicator, the axle weight, gross weight, time, and date can be printed.

Weighing accuracy(Dynamic): 3%~5% F.S.

Weighing speed:≤5km/h

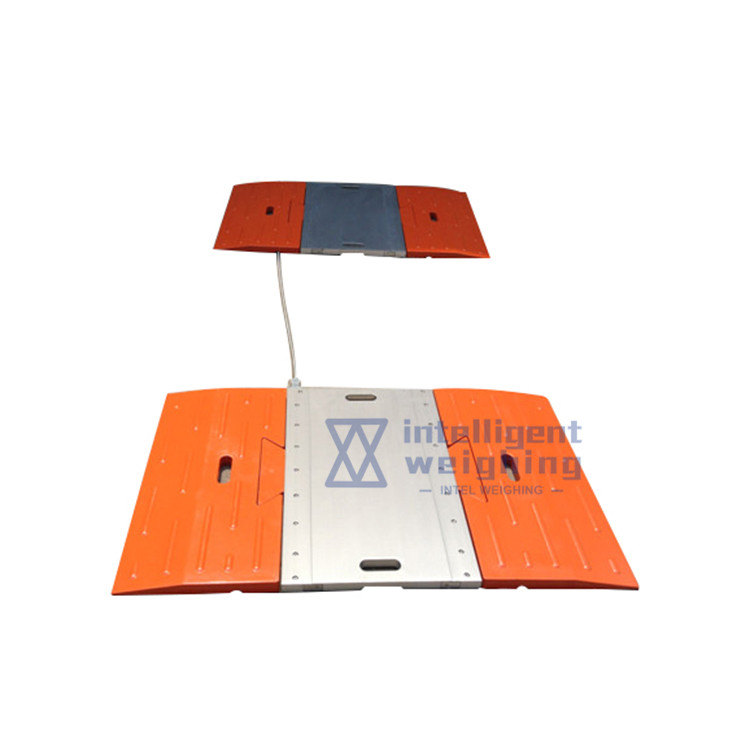

2pcs weighing pad with rubber ramps with one dynamic indicator as one set to work



Product Function:

Very good dynamic detection performance and high accuracy;

Backbit dot-matrix LCD display, clearly visible on daylight;

Full character display and printing, the user interface is extremely friendly;

Convenient input of complete vehicle number including province and city names;

Can enter the name of the testing unit and the name of the inspector;

Built-in Chinese character printer to print complete inspection vouchers;

Automatically determine whether the limit is exceeded;

Can store test records of up to 1,300 vehicles;

Complete search and statistics functions;

AC and DC dual-use, real-time display battery capacity, battery can maintain 40 hours of work, and can automatically shut down:

Can use car power (cigarette lighter) to power and charge;

The danger measurement instrument can work independently and has a complete interface, and can upload detection data to the computer at any time.





Model type



ITEM NO.

Length (mm)

Width (mm)

Height (mm)

Capacity (ton)

Division value

Material

IWPX2000 -WD5040

500

400

30

10

1/3000-1/6000

wired

IWPX2000 -WD7043

700

430

30

30

1/3000-1/6000

IWPX2000 -WD8043

800

430

39

50

1/3000-1/6000

IWPX2000 -WS5043

500

430

34

10

1/3000-1/6000

wireless

IWPX2000 -WS7043

700

430

30

30

1/3000-1/6000

IWPX2000 -WS8043

800

430

39

50

1/3000-1/6000
