4m length fixed axle load weighing scale

Fixed Axle Scale  (Model:IWFX1900 )

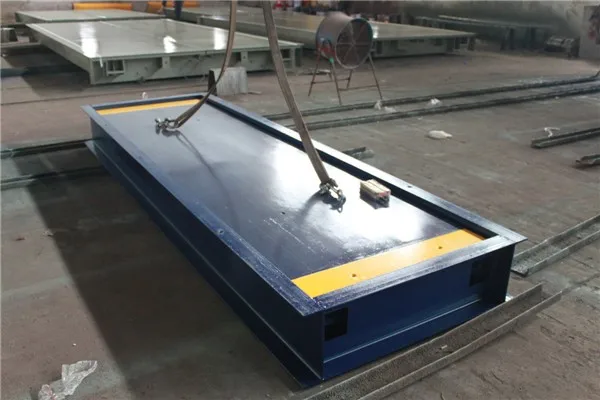

Structural Features:

8-20MM checker plate steel plate

Composed of 3or 4 U beams, robust and rigid

Middle dissected,with bolts connection

High precision strain gauge load cell

Anti rust and anti corrosion painting

Can be matched with various indicators

Product Function:

1. Multi-working mode: 3 optional modes---dynamic truck scale, dynamic axis weighing and static weighing. High precision and stability. Optional data locating operation in dynamic working mode. Swift and precise optional automatic and manual operations.

2. Big memory: Capable of storing 1500 sets of truck plate numbers and tares, 201 sets of article numbers and English names, 200 sets of customer numbers and English customer names, 100 sets of figures or English notes and 1501 sets of weight records. Data searching and deleting operation can be conducted based on different conditions.

3. Diversified printing functions:

1) Printing can be operated through high-speed self contained micro-printer or external wide-line printer.

2) Such documents as sidelong /upright weight documents, weight records form and other weight documents can be printed out in standard style or free style. Fill-in form printing style is supported. General specification form and other style specification form can be printed out in standard style and free style. Diversified statistics reports can also be printed out.

3) Parameters in instrument can also be printed out for file and reference.

4. Various communication methods: RS232 and RS422 optional communication interfaces are provided for communication with computer instruction and sequence mode. RS422 interface supports a computer connected with instruments networks. 20MA electric current loop and scoreboard communication mode are also provided.

5. Photoelectric isolation and other anti-disturbance measures are adopted to reinforce the anti-disturbance capability.

6. Have self-defined DI/DO interface.

7. Interval values can be switched automatically: 2 interval weighing operations can be chosen through parameters setting.

8. Non-linearity correction and dynamic speed compensation function.

Flexible operation mode: the same parameters setting can be swiftly conducted by using XK3190 traditional sequential operation style and Menu choice style

Model type
