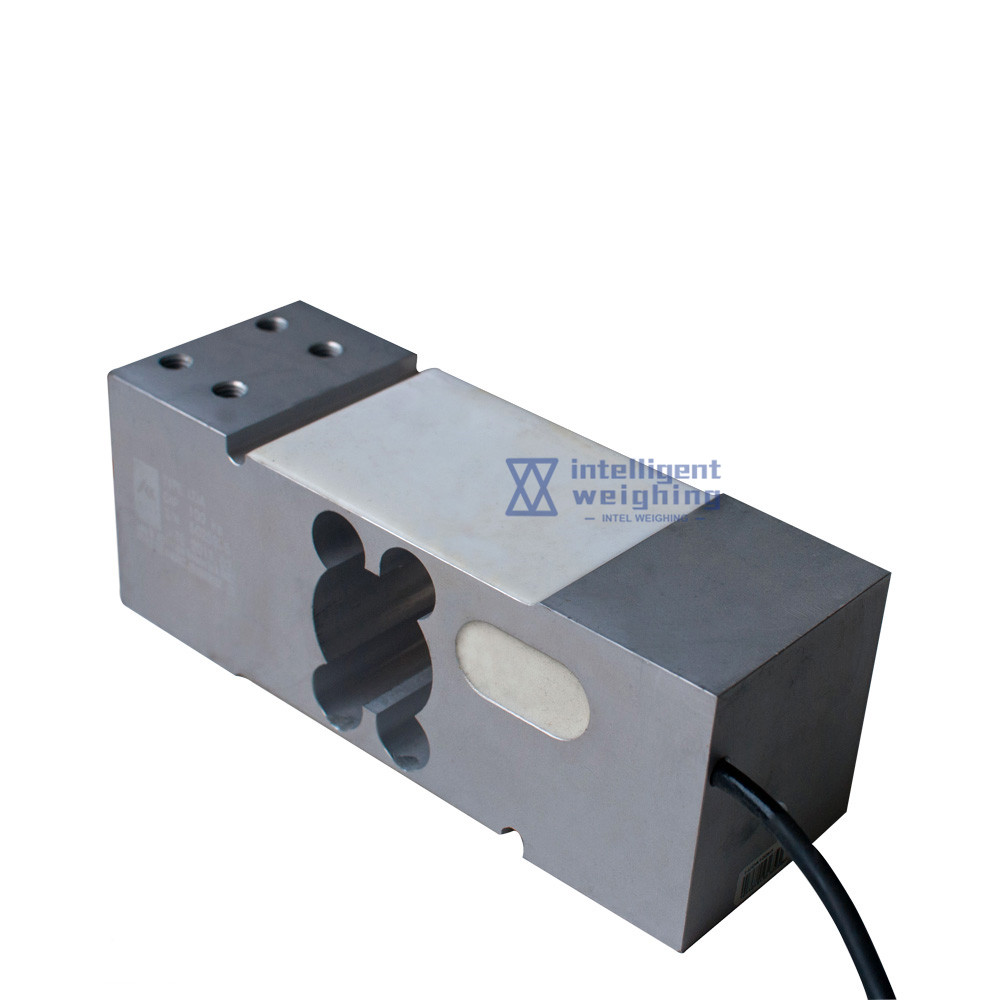

KELI bench scale load cell
KELI bench scale load cell
FEATURES:
●Capacity: 50kg to 1t
●Compact structure, easy installation
●OIML C3 approval
APPLICATION:
●Big size platform scale
●Variety kinds of press testing device
|
Outline Dimension： |
|||||||||
|
Rated capacity |
L |
L1 |
L2 |
L3 |
H |
W |
W1 |
T |
|
|
50,100,150,200,250,300,500,750,800kg,1t |
174 |
19 |
122 |
42 |
63.5 |
59.5 |
30 |
M8 |
|
|
SPECIFICATION: |
|
|
Rated capacity: 50kg to 1t |
Recommended Excitation:10V DC |
|
Rated output:2.0±0.2mv/v |
Maximum Excitation:15V DC |
|
Combined error: OIML C3 |
Environment protection: IP65 |
|
Zero balance: ±3%Emax |
Input impedance: 404±15Ω |
|
Creep error(30minutes):±166ppm |
Output impedance: 350±3Ω |
|
Temperature effect on zero: ±17.5ppm/℃ |
Insulation resistance at 50V DC: ≥2000MΩ |
|
Temperature effect on output: +20℃~+40℃,±0.0175%F.S/10℃ -10℃~+20℃,±11.67ppm/℃" |
Material: Aluminum |
|
Compensated temperature range: -10℃~+40℃ |
cable length: 1.8meter, diameter Φ5mm |
|
Operating temperature range: -20℃~+50℃ |
Max. platform size:600×600mm |
|
Maximum safe overload:150%Emax |
Installation torque, recommended: 25N.m(50kg~300kg),30N.m(500kg~1t) |
